Cleanrooms 101

What is a Cleanroom?

A cleanroom is a special environment that is supplied with HEPA (high efficiency particulate absorption) or ULPA (ultra-low particulate air) filtered air. It is designed to meet the cleanliness class requirements of the manufacturing or testing process. The cleanroom can be designed as a single ball room or it can be divided into as many individual rooms as required. Cleanroom construction varies from hardwall, rigid clear wall or soft wall construction (reference cleanroom types, this web site). A cleanroom is not “a cleaning machine”; operating protocols, cleaning and maintenance are required for the cleanroom to function as designed. Cleanroom surfaces and surfaces of equipment used in the cleanroom should be as smooth as possible for effective cleaning. Medical and pharmaceutical cleanrooms have additional requirements where all seams will be sealed to prevent harboring of pathogens. The rooms are designed and environmentally controlled to minimize airborne contamination from contacting critical sites. These facilities shall also provide a comfortable and well-lighted working environment, which typically includes a temperature of 68° F to 72° F to maintain a comfortable working environment for personnel.

Request a Cleanroom Quote

Access to the cleanroom should be limited to personnel trained and authorized to work in and maintain the area. To minimize process and product contamination the cleanroom should be setup as follows:

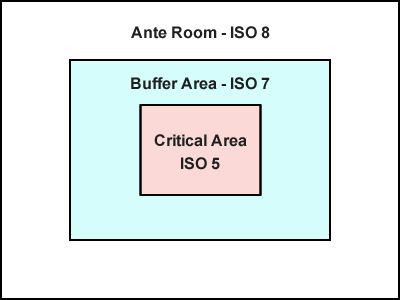

Cleanroom ISO classification zones diagram - Ante Room ISO 8, Buffer Area ISO 7, Critical Area ISO 5

Gowning Area / Ante Room: This is where the personnel will put on the specified cleanroom garment that will range from a smock, bouffant, face mask, gloves and shoe covers to a full bunny suit, hood and booties. The extent of gowning will be determined by the process requirements.

When entering the Gowning Room / Ante Room the cleanroom air will hit you in the face due to the increased pressurization of the room in relation to the non-cleanroom outside area. The cleanliness level of this area will generally be less than the other cleanroom areas.

The Manufacturing / Process area: This is where the product is built or where testing is performed. This area is generally built at a higher level of contamination control than the gowning room and is at a higher pressure level than the gowning room. This means that when you open the door from the Gowning Room to the process area the cleanroom air hits you in the face. Levels of protocol are higher in this area that will include frequency of cleaning, restrictions on allowable equipment and tools and controlled product transfer in and out.

Critical process area: If a part of the cleanroom process required a higher level of contamination control an additional room can be added or a vertical or horizontal flow bench (reference flow benches, this document) can be incorporated. Again this area will be of a higher pressure than the adjoining areas.

Negative Flow Rooms: Negative air pressure is used in cleanrooms where the goal is to keep any possible contamination from escaping the cleanroom. Windows and doors have to be completely sealed, and internal air is exhausted to “ambient” or outside of the Facility through filters or scrubbers. In general air outside the cleanroom is likely to flow into the negative pressure room rather than out of it.

The physical characteristics of construction: walls, floors, fixtures and ceilings should be smooth, impervious and free of cracks, crevices and be non-shedding. Surfaces should also be resistant to damage from cleaning and sanitizing agents. For certain industries, wall to wall and wall to ceiling junctures should be coved and / or caulked and ceiling panels, light troffers and filter units should be caulked in place to eliminate any seam. Walls may be panels locked together and sealed, reference CZT I Hardwall, floors can be Epoxy or similar material coating or overlaid with sheet vinyl flooring with heat-sealed seams. Both floor covering systems should incorporate floor to sidewall coving to a minimum of 4”.

We also offer the CZT IV Cleanroom built with clear Polycarbonate or Acrylic wall panels. The CZT IV cleanroom design allows it to be used as a totally free standing room, or in a combination with your existing walls. The CZT IV is specifically designed to meet requirements of a wide range of industries including the medical, pharmaceutical, parts cleaning, electronic, disk drive. The CZT IV can be set-up to meet ISO Class 5 (Class 100) through ISO Class 8 (Class 100,000) and can be divided into as many individual rooms as required. The cleanroom can be equipped with single or double doors, strip curtains and standard or custom sized Pass-Thru Boxes. Each Aluminum CZT IV is completely factory prefabricated to minimize on-site installation time. All components are furnished. All you have to do is supply electricity and A/C. The CZT IV is demountable and can be easily relocated in another section of your site or another part of the country. Average installation time is 2 to 3 days from start to certification (depends on overall size).

If cleanliness is the only concern please look into our CZT III Modular Softwall Cleanroom that is our most economical room design. The CZT III is designed to meet requirements of a wide range of industries including the parts cleaning, electronic, clean packaging to name a few. It is our experience that the CZT III will be moved from one product line to another as required. The softwall cleanroom is totally freestanding or it can be used in combination with your existing walls and ceiling. The room comes in varying heights to 16’ and can be equipped with an internal or external Gowning Room. The modularity of the cleanroom is also enhanced with the addition of locking casters.

Comparing Cleanroom Wall Types: CZT I, CZT III & CZT IV

Clean Zone Technology builds three primary modular cleanroom wall systems. The right choice depends on your cleanliness requirements, budget and how often the room needs to be moved.

Cleanroom	Wall Construction	Best Suited For
CZT I Hardwall	Rigid panels locked together and sealed	Applications requiring sealed, durable wall-to-wall and wall-to-ceiling construction
CZT III Softwall	Freestanding softwall; heights to 16’; optional locking casters	Most economical option; parts cleaning, electronic, clean packaging; rooms that move between product lines
CZT IV Clear Rigid Wall	Clear polycarbonate or acrylic panels; ISO Class 5 through ISO Class 8; installs in 2–3 days	Medical, pharmaceutical, parts cleaning, electronic, disk drive; demountable and relocatable

ISO Classification of Particulate Matter in Room Air

Limits are in particles of 0.5 µm and larger per cubic meter [current ISO] and cubic feet [former Federal Standard No. 209E].

Class Name		Partical Count
ISO Class	US FS 209E	ISO, m³	FS 209E ft³
3	Class 1	35.2	1
4	Class 10	352	10
5	Class 100	3,520	100
6	Class 1,000	35,200	1,000
7	Class 10,000	352,000	10,000
8	Class 100,000	3,520,000	100,000

Adapted from former Federal Standard No. 209E, General Services Administration, Washington, DC, 20407 (September 11, 1992) and ISO 14644-1 : 1999, Cleanrooms and associated controlled environments— Part 1: Classification of air cleanliness. For example, 3,520 particles of 0.5 µm per m³ or larger (ISO Class 5) is equivalent to 100 particles per ft³ (Class 100) (1 m³ = 35.2 ft³).

Cleanroom FAQs

A cleanroom is a special environment supplied with HEPA (high efficiency particulate absorption) or ULPA (ultra-low particulate air) filtered air, designed to meet the cleanliness class requirements of the manufacturing or testing process. It can be built as a single room or divided into as many individual rooms as required, and it depends on operating protocols, cleaning and maintenance to function as designed.

Both are the filtered air supplied to a cleanroom. HEPA stands for high efficiency particulate absorption, and ULPA stands for ultra-low particulate air. The filtration type is selected to meet the cleanliness class the manufacturing or testing process requires.

ISO 14644-1 classifies cleanrooms by the number of particles 0.5 µm and larger per cubic meter of air. The scale runs from ISO Class 3 (equivalent to the former Federal Standard 209E Class 1) through ISO Class 8 (Class 100,000). For example, ISO Class 5 allows 3,520 particles of 0.5 µm or larger per cubic meter, equivalent to 100 particles per cubic foot (Class 100).

The gowning area, or ante room, is where personnel put on the specified cleanroom garment — ranging from a smock, bouffant, face mask, gloves and shoe covers up to a full bunny suit, hood and booties, depending on the process requirements. It is pressurized relative to the outside area, and its cleanliness level is generally lower than the other cleanroom areas.

A negative flow room uses negative air pressure to keep any possible contamination from escaping the cleanroom. Windows and doors are completely sealed and internal air is exhausted to ambient (outside the facility) through filters or scrubbers. Air outside the cleanroom tends to flow into the negative pressure room rather than out of it.

Clean Zone Technology builds three primary wall systems: the CZT I hardwall cleanroom (rigid sealed panels), the CZT III softwall cleanroom (our most economical, freestanding design that can be moved between product lines), and the CZT IV clear rigid wall cleanroom (clear polycarbonate or acrylic panels, meeting ISO Class 5 through ISO Class 8, demountable and relocatable).
